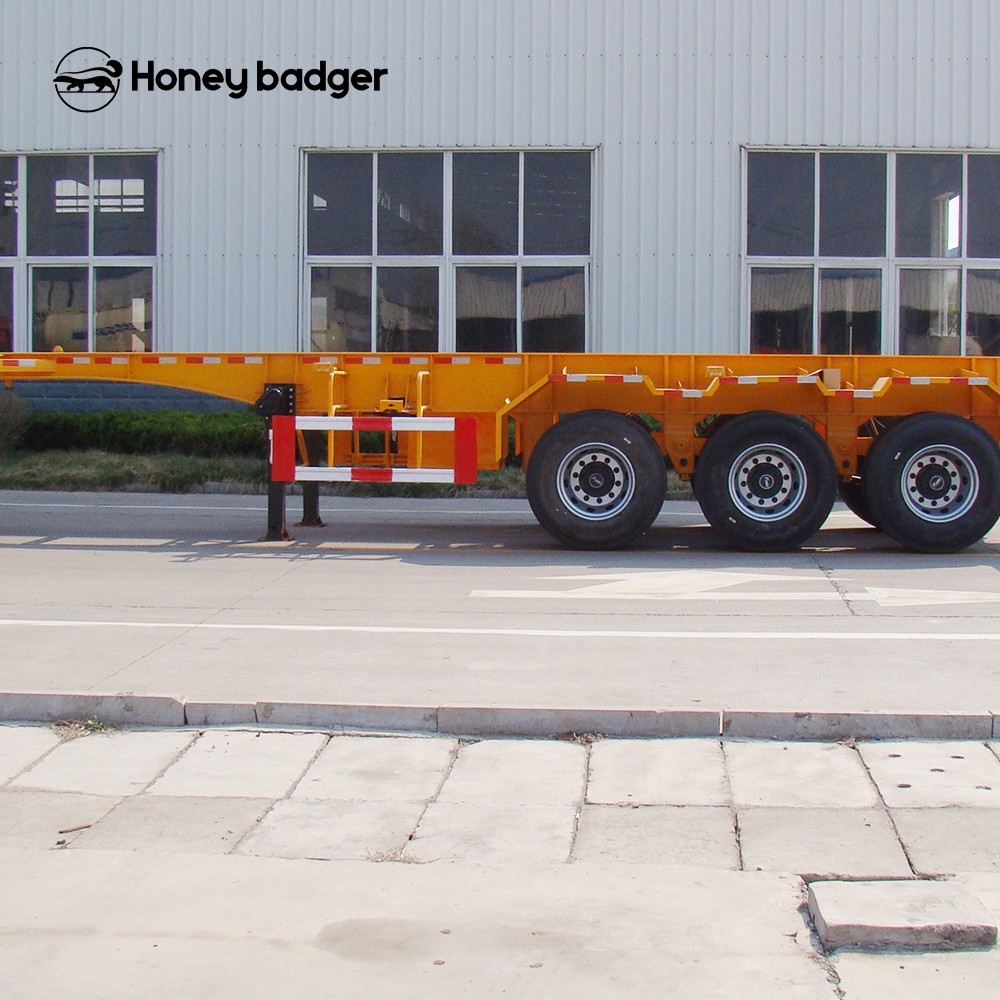

3 Axle Container Skeletal Trailer

Additional information

Air Chamber	6 sets
Axle Model/Quantity	Fuwa, 13T*3 sets
Brake Valve Specification	Three-axle synchronization
Container Locking Device	12 sets
Kingpin	Approximately 3.5 inches
Landing Gear	Single action, 28T
Leaf Spring	10 pieces, standard type
Main Beam	Vertical plate 8mm, upper wing plate 14mm, lower wing plate 16mm
Main Beam Style	Straight beam
Overall Dimensions	12.45m*2.55m*1.5m
Suspended Beam	Mechanical suspension
Through Beam	High-strength bending parts
Tires	Triangle 1200R22.5*12sets
Toolbox	1 standard type

Skeleton semi-trailer is a semi-trailer specially designed for transporting containers. The main feature of this semi-trailer is that its structure is similar to a skeleton, without a flatbed or cargo platform, primarily consisting of a steel framework to support and secure containers. Skeleton semi-trailers are widely used in ports, docks, freight stations, and logistics centers for long-distance freight and container transportation.

Advantages

1. Lightweight: Due to its simple structure, the skeletal semi-trailer is lightweight, which helps increase the vehicle’s load capacity and fuel efficiency.
2. Simple Structure: Its straightforward design makes maintenance easy, reducing repair and upkeep costs.
3. High Flexibility: Capable of accommodating different sizes and types of containers, offering a wide range of applications and strong adaptability.
4. Cost-Effective: Low production costs and long service life effectively reduce transportation and operational expenses.
5. Easy Loading and Unloading: The open structure design facilitates more convenient loading and unloading of containers, enhancing work efficiency.
6. High Safety: Reasonable design can ensure the stability and safety of containers during transportation.
